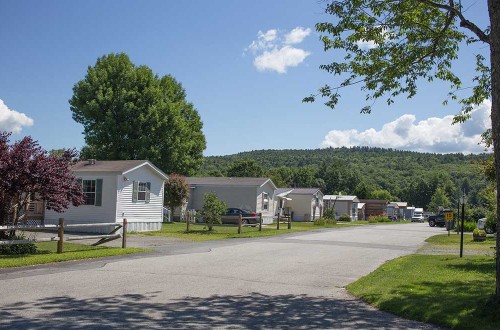

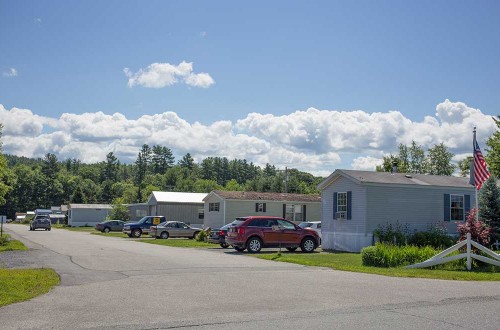

Windy Acres Cooperative Water Line Improvements



Charlestown, New Hampshire

DuBois & King provided multidiscipline services for a water line improvement project at Windy Acres Cooperative, a manufactured home park in Charlestown, New Hampshire. Project included coordination with park board members and funding agency. Water line replacements were performed along First and Second Streets for a total of 1,650 lf of replaced line. Original mains were 2-inch and replacement mains were 4-inch PVC C900. Design involved review of a complex series of conflicting utilities and considered several alternatives. Services included topographic survey, conceptual plan layout of proposed water line, preparation of final construction documents, permitting, construction specifications, and bid and construction phase services.

D&K engineers established an aggressive project schedule to deliver the design within a very short time frame in order to meet owner objectives for late fall construction. This was an ARRA-funded project with a limited budget. Successful delivery of the design on time and bid documents with strategic bid alternatives allowed the owner to construct all aspects of the project.

  • Windy Acres Cooperative
  • Windy Acres Cooperative Windy Acres Cooperative
  • Windy Acres Cooperative Windy Acres Cooperative
